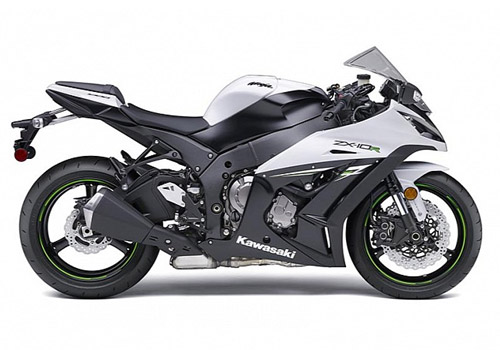

Kawasaki Ninja 10R

PERFORMANCE

The motorcycle delivers a great mix between handling power and practicality, being perfectly suited for both racetracks and city streets. Power comes from a 998 cc, four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four engine which transfers its power to the rear wheel through a six speed transmission with an adjustable back-torque limiting clutch that facilitates smooth downshifts.

Pursuing Perfection, Achieving Dominance

Kawasaki developed the ZX-10R’s electronic steering damper in joint cooperation. Controlled by a dedicated ECU located under the gas tank cover, this damper reacts to the rate of acceleration or deceleration, as well as rear wheel speed, to help provide the ideal level of damping force across a wide range of riding scenarios.

Liquid-cooled, DOHC, 998cc, Inline-four Engine

Design is compact, narrow and lightweight
Camshafts, crankshaft and pistons designed to complement the engine’s prodigious power production
Large intake valves, camshaft profiles and port shapes help maximize power production and smooth power delivery

Sport-Kawasaki Traction Control -S-KTRC

Ram-air Intake

Titanium Exhaust System

Six-speed Transmission

Chassis / Frame

Big Piston Fork (BPF)

Advanced Braking System

Three-spoke Cast Aluminum Wheels

Engine Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Displacement 998cc
Bore x Stroke 76.0 x 55.0 mm
Compression Ratio 13.0:1
Fuel System DFI® with four 47mm Keihin throttle bodies with oval sub-throttles, two injectors per cylinder
Ignition TCBI with digital advance and Sport-Kawasaki Traction Control (S-KTRC)
Transmission Six-speed
Final Drive Chain
Rake/Trail 25 Deg / 4.2 in.
Front Tire Size 120/70 ZR17
Rear Tire Size 190/55 ZR17
Wheelbase 56.1 in.
Front Suspension / wheel travel 43mm inverted Big Piston Fork (BPF), adjustable rebound and compression damping, spring preload adjustability / 4.7 in.
Rear Suspension / wheel travel Horizontal back-link with gas-charged shock, stepless, dual-range (low-/high-speed) compression damping, stepless rebound damping, fully adjustable spring preload / 5.5 in
Front Brakes Dual semi-floating 310mm petal discs with dual four-piston radial-mount calipers
Rear Brakes Single 220mm petal disc with aluminum single-piston caliper
Fuel Capacity 4.5 gal.
Seat Height 32.0 in.
Curb Weight 436.6 lbs.
Overall length 81.7 in.
Overall width 28.1 in.
Overall height 43.9 in.

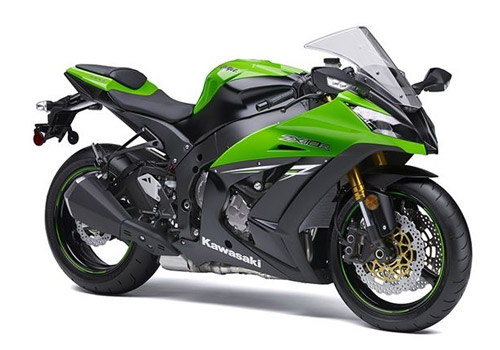

Color(s) Lime Green / Flat Ebony, Pearl Flat Crystal White / Flat Ebony
Warranty 12 Months
